Ⅰ、Purpose and Service conditions

1. Purpose
Reactor is generally classified into incoming line reactor and smoothing reactor, it can be used for starting current-limiting of AC motor and DC motor, and also can be used for current-limiting in the load of circuit or short circuit .
2. Service conditions
A height above Sea-level not exceeding 1000m;
A temperature of ambient air not below -25℃ and not above +45℃ ;
Relative air humidity: ≤95%;
In environment with waterproof equipment and without water vapor.

Ⅱ、Structure

The reactor is type of three-phase and single phase current of ,three-phase of reactor (below 700A) and current of single phase of reactor (below 500A) are continuous type winding, current of three-phase reactor over 700A and current of
single phase reactor over 500A
are designed disc winding.

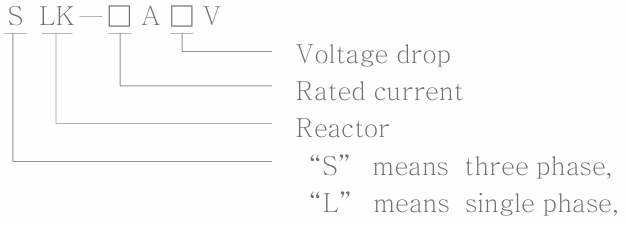

Ⅲ、Model

Ⅳ、Dimensions and install size（Unit: mm）
