Ⅰ、Purpose and Service conditions

1. Purpose
Apply to low voltage power transmission and distribution with AC. 50~60Hz freguency and various electric equipment.
2. Service conditions
A height above sea-level not exceeding 1000m;
A temperature of ambient air not below -25℃ and not above +45℃ ;
Relative air humidity: ≤ 95%;
In environment with waterproof equipment and without water vapor.

Ⅱ、Structure

The cores of Transformer are constructed of the high quality, cold-rolled oriented silicon steel. As to the transformer with the power above 5 KVA, the coil is
cylinder type, it has no steel enclosures, guiding the
primary and secondary outlet coil to fixed wiring
board or wiring electric conduction, transformer
iron core should be connected land.

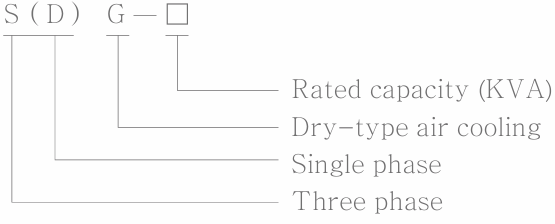

Ⅲ、Model

Ⅳ、Dimensions and install size（Unit: mm）

Ⅴ. Important notice

1、All parameters marked on the nameplate of transformer must be checked before installation.
2、Confirm the primary and secondary terminals before use, and then switch on power supply.

Note:
three、single phase transformer of various types and special specification can be designed according to the requirement of user.
